Epoxy.com™ Product #63 is a water-tight cross-linked closed-cell Ethylene Vinyl Acet

ate expanded foam material that exhibits unique properties when used in expansion contraction joints. Epoxy.com ™ Product #63 is water-tight and exhibits good chemical resistance properties to most mild non-oxidizing acids, alkalines and petroleum products.

Traffic will not embed dirt and sand in Epoxy.com ™ Product #63 as is characteristic with most pourable joint materials. It resists road salts and petroleum spills normally associated with highway traffic and oil storage.

The material remains very flexible, is non-extrudable, and may be custom cut to fit any shape. Fabrication of Epoxy.com ™ Product #63 may be accomplished through a heat-welding method on the job-site to make alterations or fabrications, etc., to meet the job requirements. Care must be taken in that the finished joint is not exposed to direct flame, thus protecting the material properties.

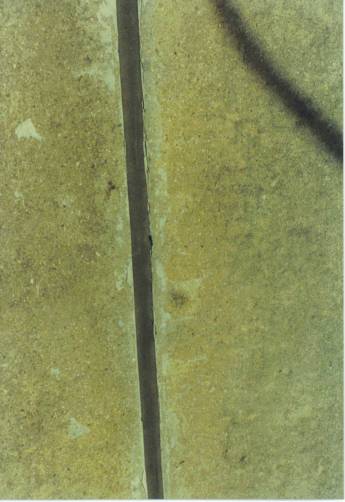

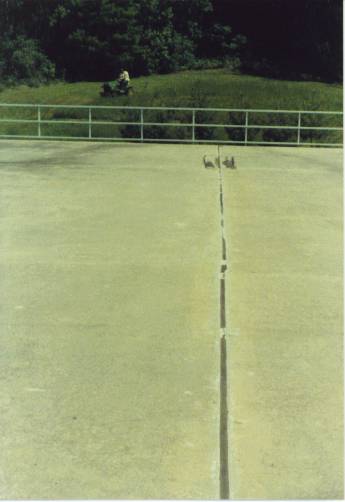

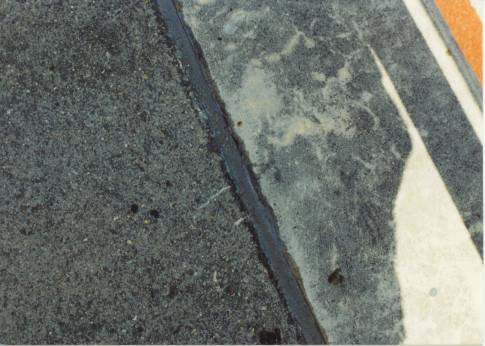

USES: Bridge Decks, Water Tanks, Chemical Storage Areas, Stadiums, and most vertical, horizontal, or overhead concrete or steel joints 3/8 inch or larger that require a long lasting, positive water-tight Joint.

Longevity of the joint and its ability to remain water-tight is primarily dependent upon good surface preparation. Durability will be extended by following the suggested recommendations.

(a) Sandblast or waterblast surface to remove laitance, sharp edges, protrusions or other contaminants which will interfere with the bonding agent.

(b) New concrete should cure to 80% of the design strength before application of joint.

(a) Sandblast or waterblast surface to remove any contaminants left on surface from cutting.

(a) Remove old joint material, backer-rod and other associated materials in joint opening.

(c) Sandblast or grind existing substrate to remove all unsound concrete, oils, greases and old bonding agents. (The substrate must be clean and sound to assure positive adhesion.)

(a) Calculate movement of span to determine correct size of joint to be installed. Using the shape factor for joint sealant materials the measurement of the depth should never

(b) Epoxy.com Product #63 should be compressed into the joint opening to a point where it will NEVER BE IN CONSTANT TENSION over long periods of time. It also should be installed in a way that will not exceed 50% in compression. Under over compression the material will develop a compression set.

(c) apply Epoxy.com � Product #2006 evenly to both inter surfaces of the nosing and both sides of the Epoxy.com � Product #63 with a small brush or putty knife. (

(e) Use a Teflon coated iron to heat weld Epoxy.com Product #63 into continuous lengths.

The information that follows was obtained using the standards for testing preformed expansion joint material for concrete established by AASHTO in accordance with T4249 (1974).

1" 0.134 The specimens showed no deterioration or degradation of the cell structure.

This chart is intended as a guideline for the specifier and installer. Many other conditions may have an effect upon the materials and should be taken into account before specifying, ordering or installing the material. Some of these factors are: length of exposure, chemical concentration, temperature, static and dynamic loading. Please contact the technical department if there are further questions.

		ACIDS
Organic		Inorganic
Acetic Acid (3%)	A	Boric Acid	A	Nitric Acid (10%)	B
Acetic Acid (10%)	B	Hydrobromic Acid	A	Nitric Acid (50%)	D
Acetic Acid (50%) Acetic Acid (3%)	D	Hydrochloric Acid (3%)	A	Phenol, Carbonic Acid	D
Carbonic Acid	A	Hydrochloric Acid (10%)	B	Phosphoric Acid (50%)	A
Citric Acid	A	Hydrochloric Acid (30%)	C	Stannic Flouroborate	A
Stearic Acid	B	Hydrocyanic Acid	A	Sulfuric Acid (10%)	A
Tannic Acid	A	Hydrofluoric Acid	D	Sulfuric Acid (20%)	C

		ALKALI'S
Ammonia (liquid)	A	Calcium Hydroxide	A	Potassium Carbonate	A
Aniline	D	Copper Cyanide	A	Sodium Hydroxide (80%)	A
Barium Hydroxide	A	Lime	A	Sodium Metaphosphate	A
Calcium Carbonate	B	Magnesium Hydroxide	A	Triethylamine	A

OXIDIZING		AGENTS
Calcium Hypochlorite	A	Magnesium Oxide	A
Carbon Monoxide	A	Sodium Hypochlorite (20%)	C
Chromic Acid (20%)	C	Sodium Peroxide	A
Hydrogen Peroxide (28%)	C	Sulfur Dioxide	A

		SOLVENTS
Acetone	C	Ethane	A	Pentane	A
Alcohol's (all)	A	Ether	A	Perchlorethylene	C
Aliphatic Hydrocarbons	A	Ethyl Acetate	C	Phenol	C
Aromatic Hydrocarbons	A	Ethylene Dichloride	D	Propane (liquid)	A
Benzene	B	Ethylene Glycol	A	Propylene Glycol	A
Butane	A	Freon	A	Toluene	C
Carbon Tetrachloride	C	Glycerin	A	Trichlorethane	B
Chlorinated Hydrocarbons	A	Glycerol	A	Turpentine	A
Cychlohexane	A	Lead Acetate	A	Naphtha	B
Diethyl Ether	A	Methyl Ethyl Ketone (MEK)	C	Xylene	A
Dimethylene Glycol	A	Naphthalene	A	Xylol	B

		MISCELLANEOUS
Sodium Borate	A	Chlorine Anhydrous Liquid	A	Jet Fuel	C
Bromine	D	Gasoline	B	Mercury	A
Chlorine (10%)	A	Iodine	D	Sea Water	A

If you are concerned about a substance that does not appear in this literature, please call technical support. More recent testing and applications might provide additional information, e.g. to date, although over forty salts have been tested, none have had any effect. This chart is only intended as a guideline. In order to be assured of satisfactory performance, all users should test the material under the conditions in which they will be installed.

For further information, including specification and application assistance

	RATINGS CODE
A	Excellent - No Effect
B	Good - Minor Effect
C	Fair - Moderate Effect
D	Not Recommended - Level of Exposure & Concentration Indicate Further Testing Required

Water-Tight EVA Foam Expanison Joint System

Epoxy.com Product #63

GENERAL DESCRIPTION
