Injection Equipment - Crack Repair

Equipment for Injecting Epoxy and Urethane

Crack Repair in Concrete and Wood Systems by Epoxy.com

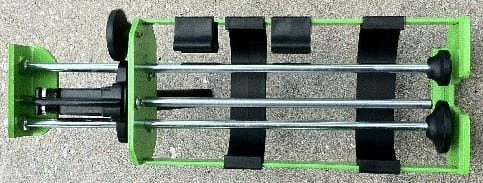

Duel Component Injection Gun Hand Operated for Pressure Injection of Cracks and Voids in Concrete and Wood

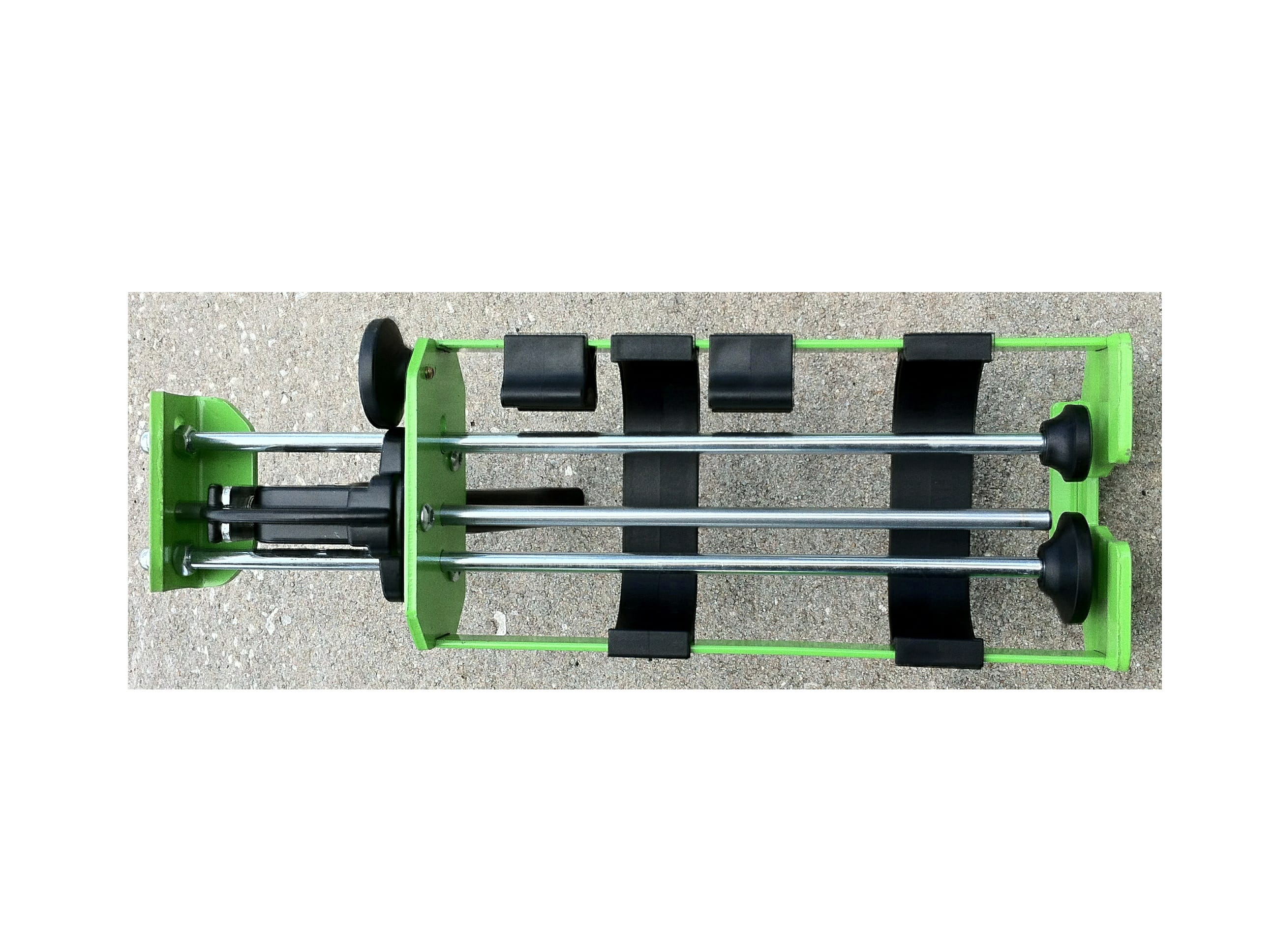

Top View of Epoxy.com Binary Injection Gun for Pressure Injection.

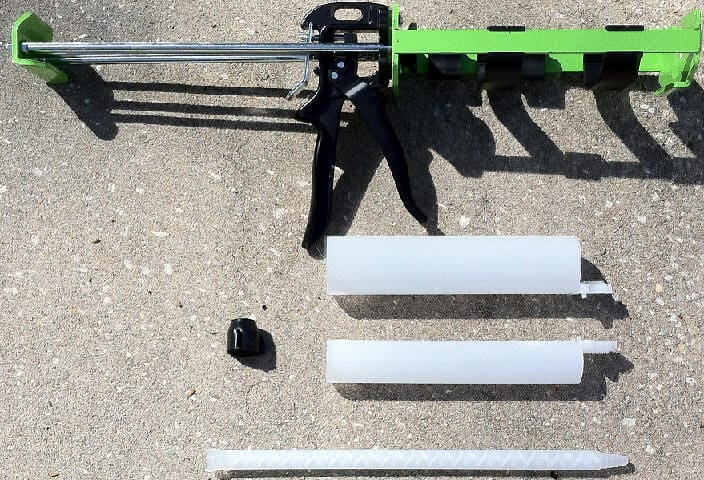

Binary Injection Hand Gun for Pressure Injection of Concrete and wood

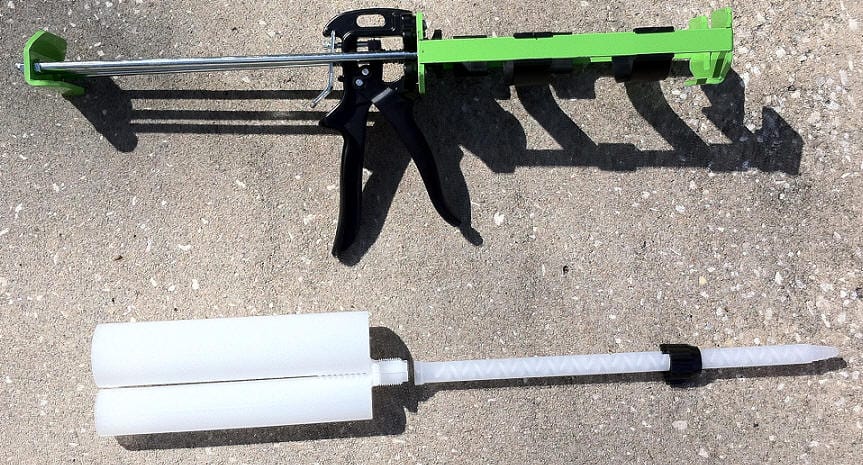

Side View of Epoxy Injection gun with 300ML and 150ML tub sets, with static mix tube and nut.

Injection Hand Gun Binary Side View with Tube Assembly and Static Mix tube

For a 2A:1B mix ratio the "A" goes into the large tube, the "B" into the small tube. The static mix tube attaches to the end of the two tubes with a nut. This maintains the 2:1 mix ratio.  The system can use two large tubes if the mix ratio is 1:1.

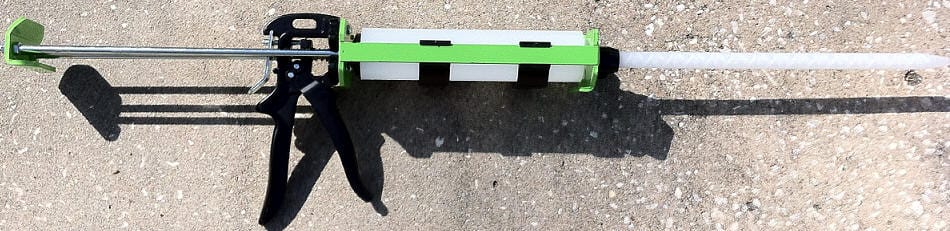

Binary Injection Hand Pump with Binary Tubes and Static Mix Tub and Nut

The tubes now attached to the static mix tube, is put into the gun, and it is operated much like a standard caulking gun.
